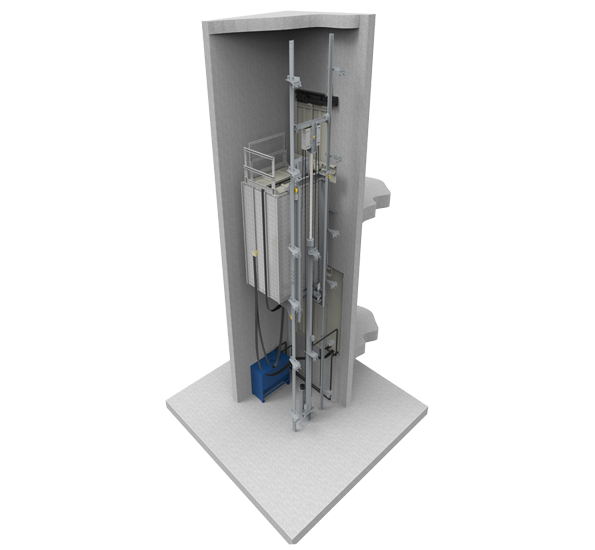

Hydraulic Elevator

We offer hydraulic elevators, installing a holeless hydraulic elevator can help people with a disability, elderly people, or people unable to climb stairs easier access to your building. Hydraulic lift motor drive and pumps has the high properties and quality. Which brings about in the extremely quiet and smooth lift running.

Its oil temperature monitor system can keep the finest temperature of the oil. In this way, it guarantees the smooth elevator operation. The advanced control valve can ensure the smooth lift acceleration and deceleration under any load conditions.

Hydraulic lift adopts many safety measures such as the safety valve which protects the hydraulic system, one way valve which prevents from the return-flow of the hydraulic oil, the anti-stall device etc.

Description

  • Machine
  • Function Type
  • Speed
  • Power Consumption
  • Oil Maintenance
  • Break Type
  • Roping
  • Overhead
  • Pit

Hydraulic

  • DC Motor
  • Oil Pumping
  • 0.5 m/s
  • 3 Unit / hr (approx)
  • Yes
  • Automatic Hydraulic Valve
  • 1:1
  • 3600 mm
  • 1500 mm

International Standard Dimensions

All Dimensions are in mm

Capacity
Load
Shaft Size
Car Size
Entrance
PC KG SW SD CW CD CO
2 150 1500 1300 800 800 700
3 220 1500 1400 800 900 700
4 300 1500 1600 800 1100 700
5 375 1700 1700 1000 1100 700
6 450 1800 1800 1100 1100 800
8 600 1800 1800 1100 1400 800
10 750 1900 1900 1200 1550 900

PC – Passenger Capacity | KG-Kilogram | SW-Shaft Width | CW-Car Width | CD – Car Depth | CO – Clear Opening
